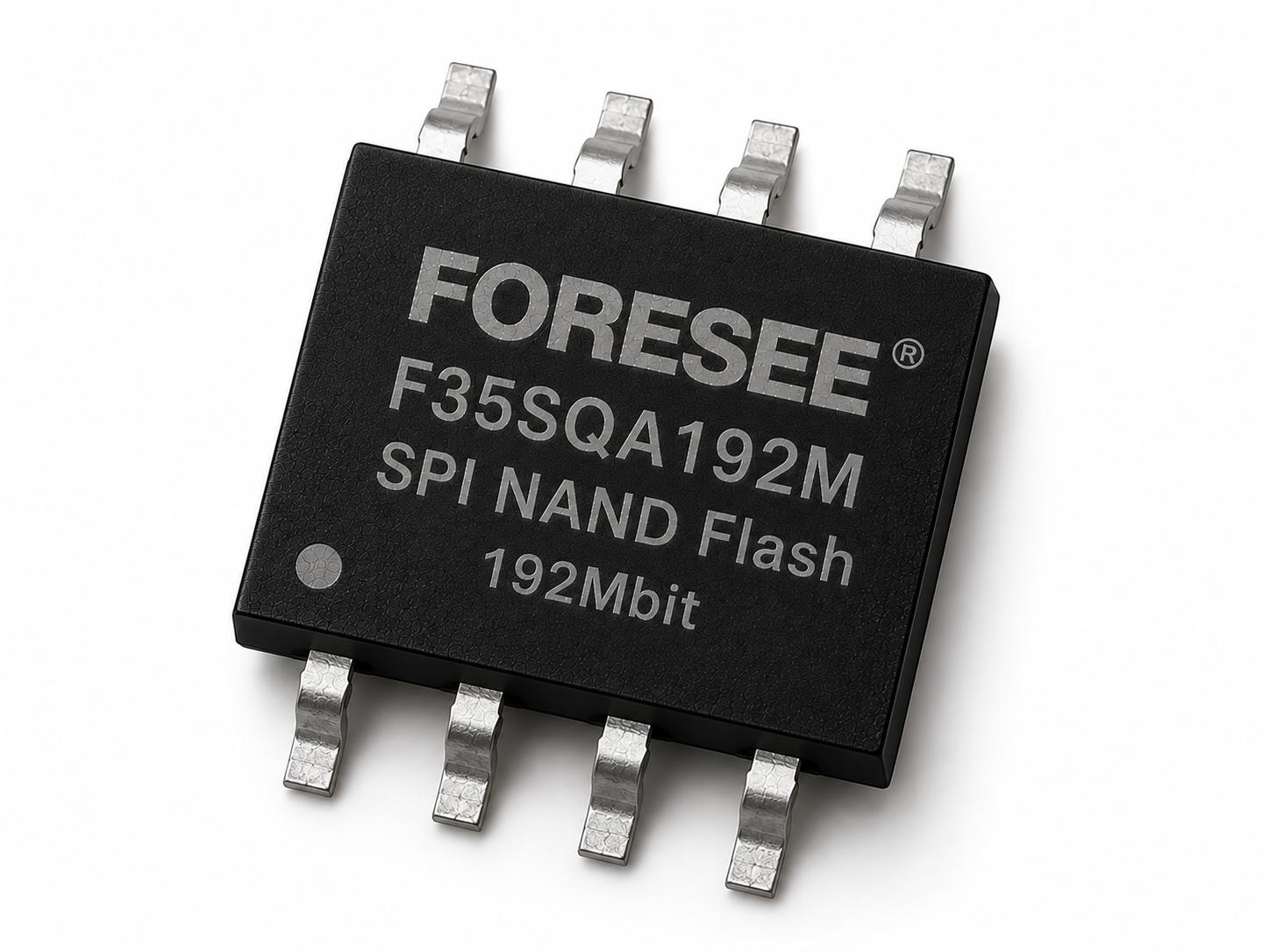

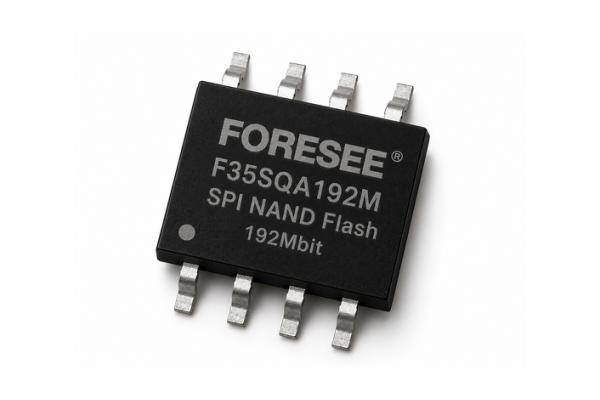

Foresee F35SQA192M
192Mbit SPI NAND Flash
  • Part No. - F35SQA192M
  • Memory Type - Serial SLC NAND Flash
  • Density - 192Mbit (24M x 8-bit)
  • Interface - Standard / Dual / Quad SPI (x1 / x2 / x4)
  • Clock Frequency - up to 166MHz
  • Voltage - 2.7V ~ 3.6V
  • Page Size - 2KB + 64B
  • Built-in ECC - 1-bit ECC
  • Package Options - 8-WSON / 8-SOP
  • Operating Temperature - -40°C ~ +85°C
The F35SQA192M is a 192M-bit (24Mx8bit) Serial NAND Flash Memory, operates on a single 3.3V VCC. The device supports the standard Serial Peripheral Interface (SPI), Dual/Quad SPI: Serial Clock, Chip Select, Serial Data SIO0 (DI), SIO1 (DO), SIO2 (WP#) and SIO3 (HOLD#).
The F35SQA192M supports JEDEC standard manufacturer and device ID, Unique ID, one parameter page and 62 OTP pages. An internal 1-bit ECC logic is available in the chip, which is enabled by default. The internal ECC can be disabled or enabled by command.

Features

Voltage Supply

- VCC: 2.7V ~ 3.6V

Organization

- Memory Cell Array: (24M + 768k) Byte

- Page Size: (2k + 64) Byte

- Block Size: 64 pages, (128k + 4k) Byte

Serial Interface

- Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#

- Dual SPI: CLK, CS#, SIO0-SIO1, WP#, HOLD#

- Quad SPI: CLK, CS#, SIO0-SIO3

High Performance

- 166 MHz Standard/Dual/Quad SPI clocks

- 83 MHz DTR Read SPI clock

- Page Program Time: 350µs (Typ.)

- Block Erase Time: 2ms (Typ.)

Low Power

- Standby: 10µA (Typ.)

- Page Read: 10mA (Typ.)

- Program/Erase: 15mA (Typ.)

Advanced Features

- Support Continuous and Sequential Read

- On chip 1-Bit ECC for memory array

- Software and Hardware write protect

- Bad Block Management and LUT access

- Unique ID

- One 2kB parameter page

- Sixty-two 2kB OTP Pages

- Promised golden block0

High Reliability

- Endurance: typical 100k cycles (1)

- Data Retention: 20 years (1)

Package

- 8-WSON (5x6mm)

- 8-SOP (208mil)

- 8-SOP (150mil)
