FORESEE eMMC provides an embedded storage solution with NAND flash and eMMC controller in BGA package. The controller could manage the interface protocols, wear-leveling, bad blocks and ECC. FORESEE eMMC has high performance at a competitive cost, high quality and low power consumption, and is compatible with the JEDEC standard of eMMC 5.1 specifications.

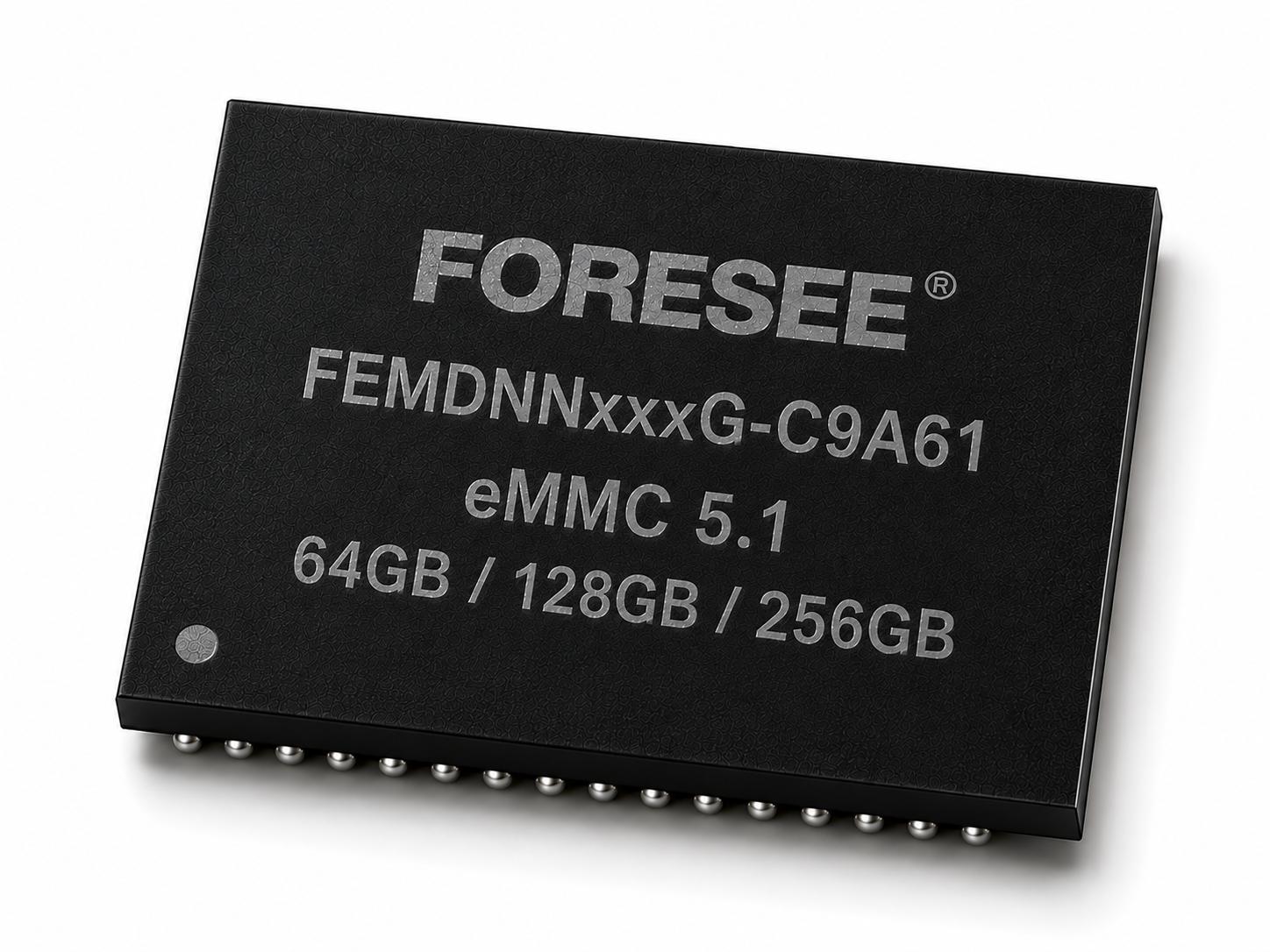

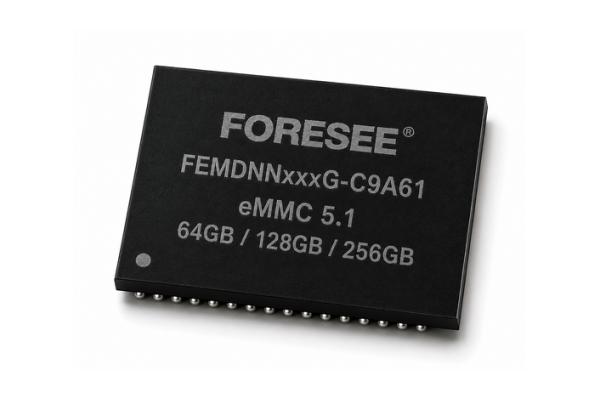

Foresee FEMDNNxxxG-C9A61 eMMC 5.1
64/128/256GB
- Series - FEMDNNxxxG-C9A61
- Capacity Options - 64GB / 128GB / 256GB
- Interface - eMMC 5.1
- Performance Mode - HS400 / HS200
- Data Transfer Rate - up to 400MB/s (HS400)
- Sequential Read - up to 320MB/s
- Sequential Write - up to 300MB/s
- Package - 153-ball FBGA (11.5mm x 13.0mm x 1.0mm)
- Data Bus Width - 1-bit / 4-bit / 8-bit
- Operating Temperature - -25°C ~ +85°C
Key Features
eMMC 5.1 Specification Compatibility
- JEDEC Standard No. JESD84-B51A
- Backward compatible with eMMC4.41/4.5/5.0
Operating Voltage Range
- VCC (NAND): 2.7 ~ 3.6V
- VCCQ (Controller): 1.7 ~ 1.95V / 2.7 ~ 3.6V
Bus Mode
- Advanced 12-signal interfaces, including 8-line DATA, CLK, CMD, RSTN, DS
- Data bus width: 1 bit (default), 4 bits, 8 bits
- Data transfer rate: up to 400MB/s (HS400)
- eMMC I/F boot frequency: 0~52MHz
- eMMC I/F clock frequency: 0~200MHz
Temperature Range
- Operation: -25°C ~ +85°C
- Storage without operation: -40°C ~ +85°C
Supported Features
- HS400, HS200
- Partitioning, RPMB
- Boot feature, boot partition
- HW Reset / SW Reset
- Sleep Mode
- Discard, Trim, Erase
- High-Priority Interrupt (HPI)
- Field firmware update (FFU)
- Write Protection
- Lock/unlock operation
- Sudden-Power-Loss safeguard
- Hardware ECC engine
- Unique firmware backup mechanism
- Global-wear-leveling
Vendor Function
- Product Health Information
- Initial Data Acceleration (IDA)
