This product is ADATA’s most advanced eMMC flash storage solution, combining an embedded flash controller and 3D NAND flash memory, with eMMC 5.1 interface.
Empowered with eMMC 5.1 feature set such as HS400 mode, the product is the optimal device for reliable code and data storage. In addition to high reliability and high system performance offered by the current ADATA eMMC family of products, product support for multiple NAND technology transitions, as well as features such as an advanced power management scheme. Product provides high random access speed, advanced flow control capability, more powerful computing power. The hardware ECC engine implements intelligent flash management and improves the NAND flash endurance. With enhanced vendor command support and embedded test modes, product brings high flexibility for customized usage and failure analysis.
Product is well-suited to meet the needs of small, low power, electronic devices. With JEDEC form factors measuring 11.5mm x 13mm (153 balls) compatible with 0.5mm ball pitch. The product is suitable for a wide variety of electronic devices such as smartphones, tablets, PDAs, eBook readers, digital cameras, recorders, MP3, MP4 players, electronic learning products, digital TVs and set-top boxes.

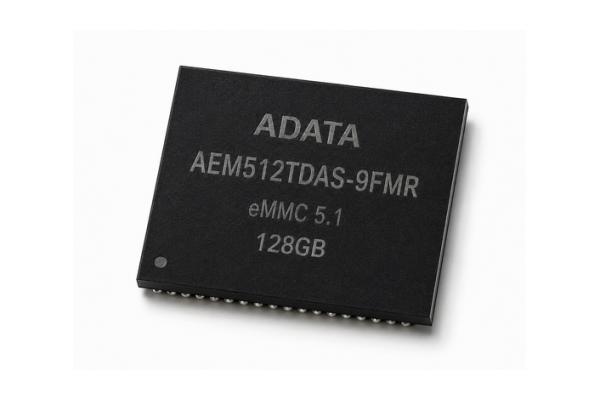

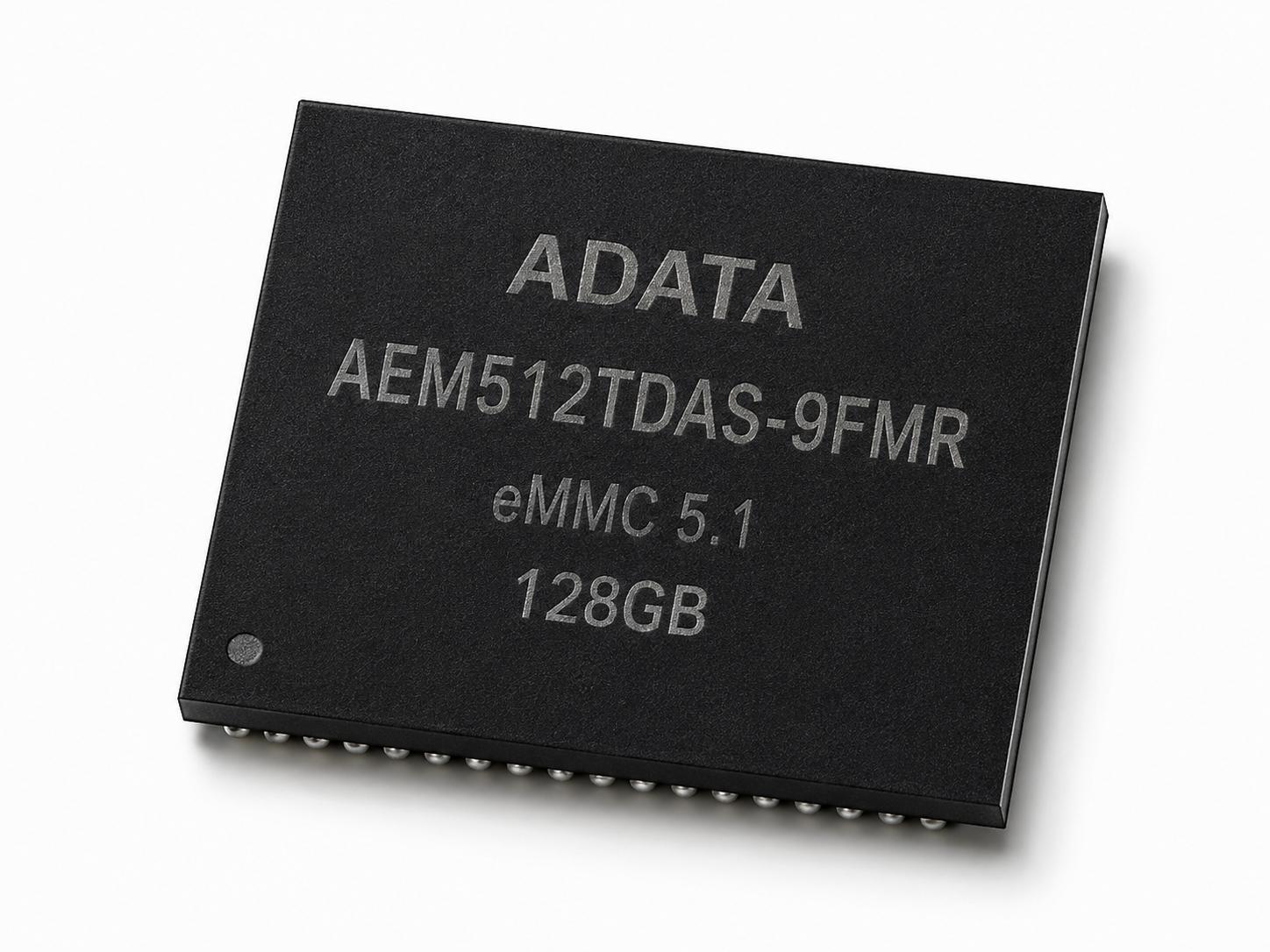

Adata AEM512TDAS-9FMR eMMC 5.1
128GB 3D NAND TLC
- Part No. - AEM512TDAS-9FMR
- Capacity - 128GB
- NAND Flash - 3D NAND TLC
- Interface - eMMC 5.1
- Performance Mode - HS400
- Sequential Read - up to 315MB/s
- Sequential Write - up to 250MB/s
- Package - 153-ball FBGA (11.5mm x 13mm x 1.0mm)
- Data Bus Width - 1-bit / 4-bit / 8-bit
- Operating Temperature - -25°C ~ 85°C
Key Features
Capacity:
- 128 GB
NAND Flash:
- 3D NAND TLC
Form Factor:
- 11.5mm x 13mm x 1.0mm
Package:
- FBGA 153 ball
Interface:
- eMMC 5.1
Flash Management:
- LDPC ECC Engine
- Bad block Management
- Garbage collection
- TRIM Command
- Wear-leveling
- IOPS optimization
- Read sensing
Double data rate function:
- HS400
Data bus widths:
- 1 bit, 4 bit, 8 bit
Memory Power(VCC):
- 3.3V (2.7V~3.6V)
Interface Power(VCCQ):
- 1.8V (1.7V~1.95V)
- 3.3V (2.7V~3.6V)
Performance:
- 128 GB: Read 315MB/s; Write 250MB/s
Temperature:
- Operating: -25°C ~ 85°C
- Non-operation: -40°C ~ 85°C
