Quectel SG882G-AP

Smart Module

Android/Linux smart module
LGA package
33mm x 39mm x 3.85mm
12GB LPDDR5X + 256GB UFS

SG882G-AP is Quectel’s new generation of flagship Android/Linux smart module. Based on Qualcomm’s flagship IoT chipset QCS8550 with built-in maximum octa-core high-performance Kryo^TM CPU, Adreno^TM 740 GPU, Adreno 1295 DPU, Adreno 8550 VPU, Hexagon^TM DSP, and Spectra^TM ISP. Featuring powerful performance and rich multimedia functions, it is ideal for both industrial and consumer applications requiring high computing power, edge computing and multimedia functions.

A rich set of interfaces (such as LCM, Camera, touch panel, I2S, PCIe, UART, USB, I2C, SPI, etc.) extend the applicability of the module to a wide range of M2M applications, including video conference systems, live streaming devices, gaming, edge computing, robots, AR/ VR, intelligent retail, and smart safety.

Key Features

Kryo™ CPU
Adreno™ 740 GPU
Hexagon™ DSP + Hexagon Vector eXtensions (HVX) + Hexagon Matrix eXtensions (HMX)
Spectra™ ISP
Adreno 8550 VPU
Adreno 1295 DPU
Neural processing unit
Security processing
Video encoder: 4K @ 120 fps; 8K @ 30 fps
Video decoder: 4K @ 240 fps; 8K @ 60fps
Computing power of up to 48 TOPS

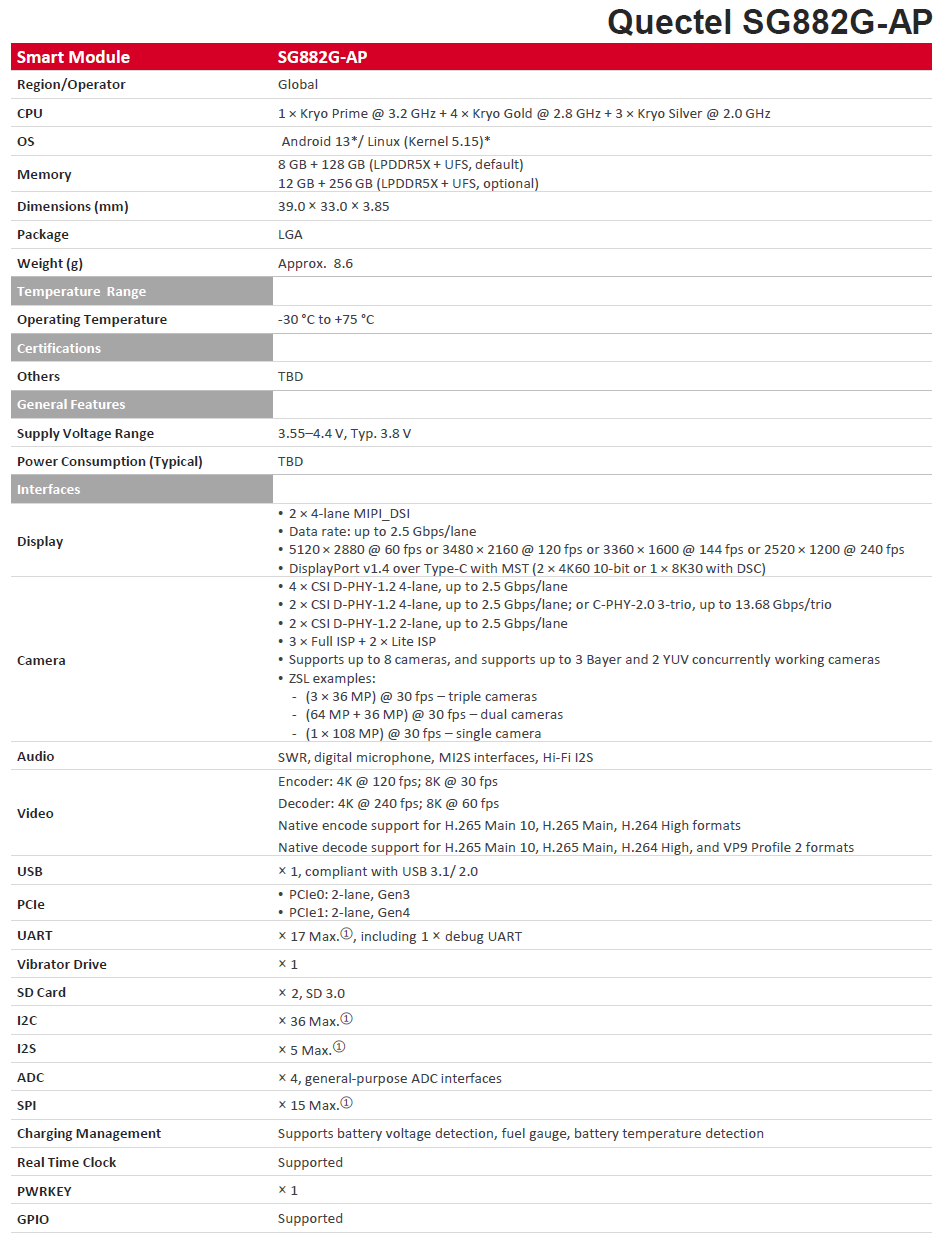

Smart Module	SG882G-AP
Region/Operator	Global
CPU	1 × Kryo Prime @ 3.2 GHz 4 × Kryo Gold @ 2.8 GHz 3 × Kryo Silver @ 2.0 GHz
OS	Android 13/ Linux (Kernel 5.15)
Memory	8 GB + 128 GB (LPDDR5X + UFS, default) 12 GB + 256 GB (LPDDR5X + UFS, optional)
Dimensions (mm)	39.0 × 33.0 × 3.85
Package	LGA
Weight (g)	Approx. 8.6
Temperature Range
Operating Temperature	-30 °C to +75 °C
Certifications
Others	TBD
General Features
Supply Voltage Range	3.55–4.4 V, Typ. 3.8 V
Power Consumption (Typical)	TBD
Interfaces
Display	• 2 × 4-lane MIPI_DSI • Data rate: up to 2.5 Gbps/lane • 5120 × 2880 @ 60 fps or 3480 × 2160 @ 120 fps or 3360 × 1600 @ 144 fps or 2520 × 1200 @ 240 fps • DisplayPort v1.4 over Type-C with MST (2 × 4K60 10-bit or 1 × 8K30 with DSC)
Camera	• 4 × CSI D-PHY-1.2 4-lane, up to 2.5 Gbps/lane • 2 × CSI D-PHY-1.2 4-lane, up to 2.5 Gbps/lane; or C-PHY-2.0 3-trio, up to 13.68 Gbps/trio • 2 × CSI D-PHY-1.2 2-lane, up to 2.5 Gbps/lane • 3 × Full ISP + 2 × Lite ISP • Supports up to 8 cameras, and supports up to 3 Bayer and 2 YUV concurrently working cameras • ZSL examples: - (3 × 36 MP) @ 30 fps – triple cameras - (64 MP + 36 MP) @ 30 fps – dual cameras - (1 × 108 MP) @ 30 fps – single camera
Audio	SWR, digital microphone, MI2S interfaces, Hi-Fi I2S
Video	Encoder: 4K @ 120 fps; 8K @ 30 fps Decoder: 4K @ 240 fps; 8K @ 60 fps Native encode support for H.265 Main 10, H.265 Main, H.264 High formats Native decode support for H.265 Main 10, H.265 Main, H.264 High, and VP9 Profile 2 formats
USB	×1, compliant with USB 3.1/ 2.0
PCIe	• PCIe0: 2-lane, Gen3 • PCIe1: 2-lane, Gen4
UART	×17 Max.①, including 1 ×debug UART
Vibrator Drive	×1
SD Card	×2, SD 3.0
I2C	×36 Max.①
I2S	×5 Max.①
ADC	×4, general-purpose ADC interfaces
SPI	×15 Max.①
Charging Management	Supports battery voltage detection, fuel gauge, battery temperature detection
Real Time Clock	Supported
PWRKEY	×1
GPIO	Supported

NOTE:
1. *: under development.
2. TBD: To be determined.
3. ①: Multiplex interfaces included.

- Quectel SG882G-AP Specification v 1.0

  pdf (222.80 KB)
