The SC362Z-AP is Quectel’s new generation smart module, with an embedded Linux/ Android operating system. The module integrates Rockchip IoT chip RK3562/ RK3562J. Based on high-performance quad-core ARM Cortex-A53 CPU, ARM Mali G52 GPU, 13 M ISP HDR, 1 TOPS NPU as well as supporting external Wi-Fi and Bluetooth, the module is ideal for industrial applications requiring automation and consumer applications requiring high data rate and multimedia functions.
The SC362Z-AP module integrates abundant peripheral interfaces, including 1 x LVDS/ RGB/ MIPI, dual 1000M/ 100M ethernet interfaces, multiple industrial serial interfaces, 2 x USB, 1 x PCIe, 10 x UART, etc.
With a 4K video decoder and a 1080P video encoder, and combined with 1 TOPS NPU and complete deep learning algorithm, the module can fully meet the requirements for the localization of edge devices in the field of industrial control. Featuring an embedded Linux/ Android operating system, and compatible with the external Quectel Cat 4/ 1, 5G, Wi-Fi 6 and GNSS modules, the module can be extensively applied to M2M use cases in smart business displays, express cabinets, electricity, vehicle center consoles, tablet PCs, industrial control terminals, smart home, and other industries.

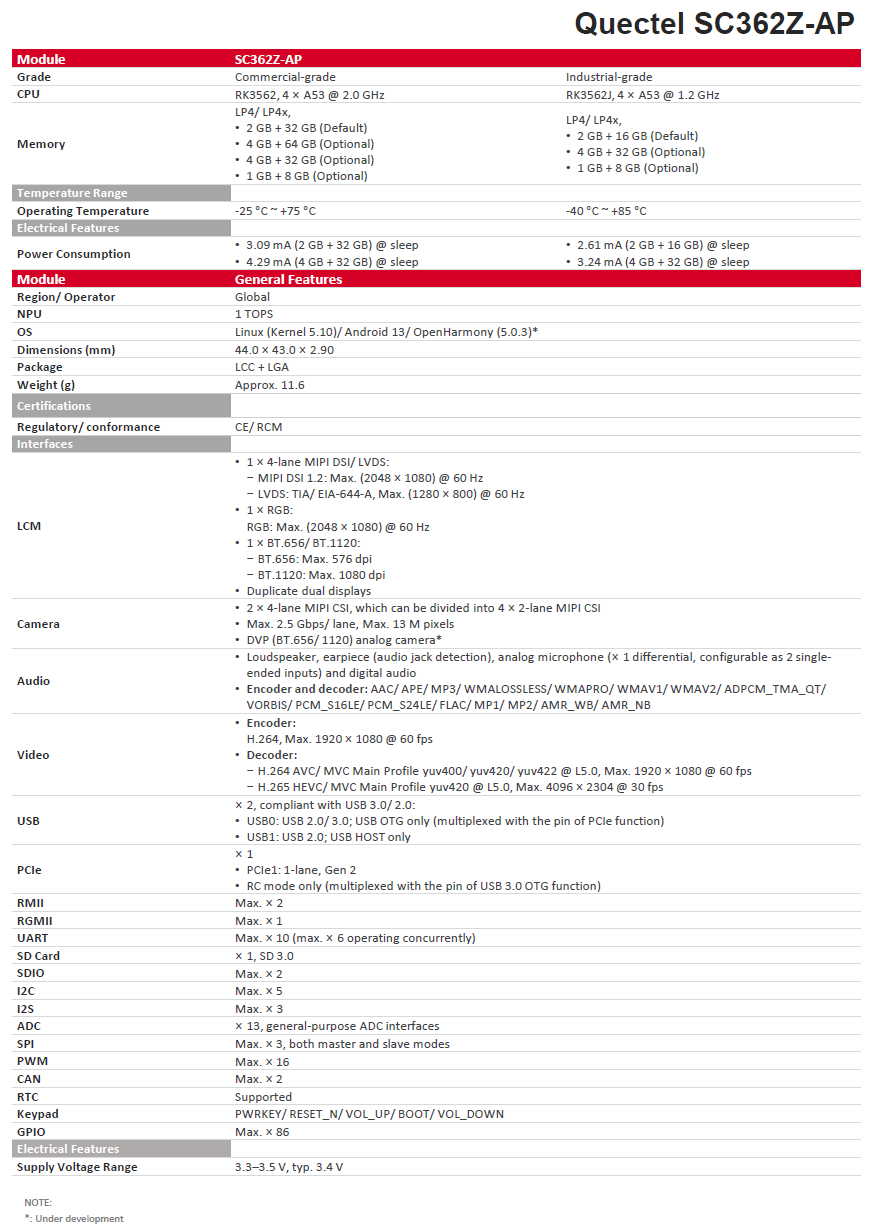

Key Features
- Quad-core ARM Cortex-A53 CPU
- ARM Mali G52 GPU
- 13 M ISP HDR
- 1 TOPS NPU
- 4K @ 60 fps video decoder
- 1080p @ 60 fps video encoder
- PCIe 2.1/ USB 3.0/ SD 3.0
- MIPI DSI 1.2/ LVDS/ RGB
- MIPI CSI 1.2
- Dual 1000 M/ 100 M ethernet interfaces
