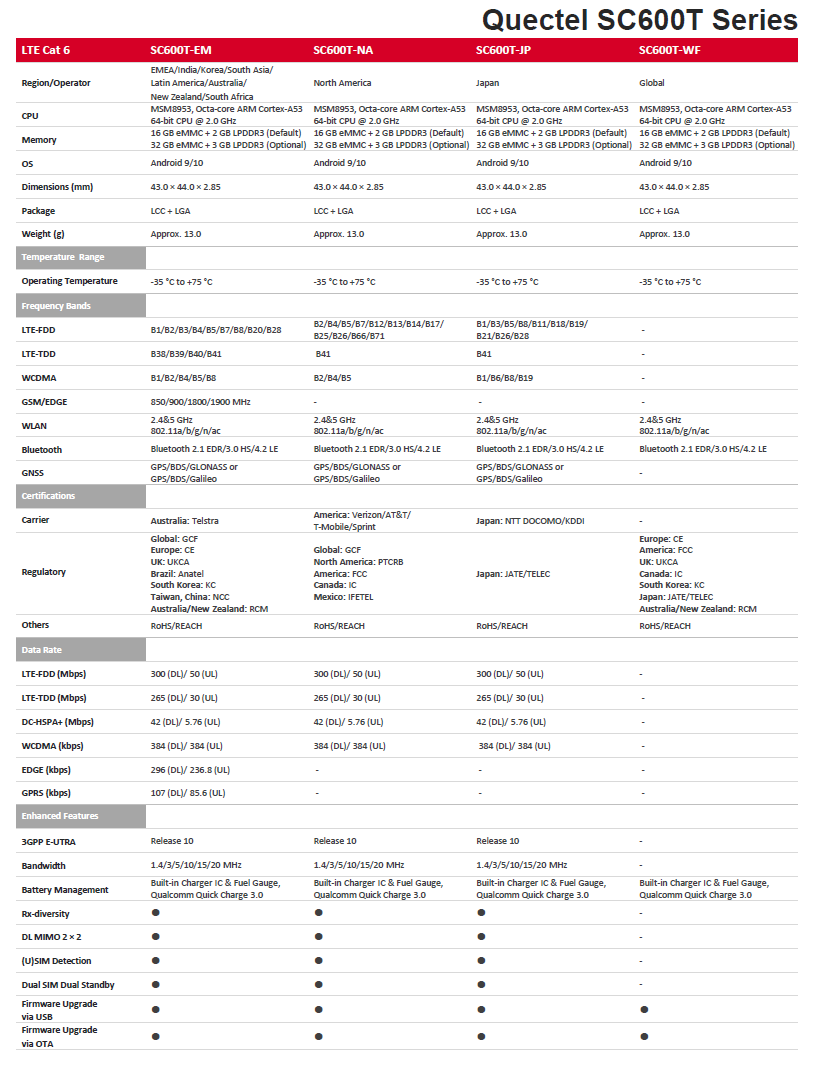

The SC600T is a series of new-generation multi-mode LTE Cat 6 smart IoT modules measuring 43.0mm × 44.0mm × 2.85mm with built-in Android OS, based on Qualcomm’s ARM Cortex-A53 64-bit octa-core processor, and built-in Adreno 506 GPU. This high-performance module supports various multimedia features and Quick Charge 3.0 technology, making it ideal for both industrial and consumer applications that require high data rates. The SC600T consists of four variants to meet various geographical demands, which can be compared via the table above.
Multiple-input multiple-output (MIMO) technology allows the SC600T to greatly minimize errors and improve data speeds. The module also combines high-speed wireless connectivity with embedded multi-constellation and a high-sensitivity GNSS (GPS, GLONASS, BeiDou, Galileo) receiver for positioning.
A wide range of supported interfaces (including LCM, Camera, Touch Panel, MIC, UART, USB, and I2C) allow the SC600T to serve a wide range of IoT applications including smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, smart safety, PDA & tablets, vending machines, delivery lockers, audio and video recorders, as well as video streaming and entertainment systems.
Key features
- Qualcomm ARM Cortex-A53 64-bit octa-core processor
- Built-in Adreno™ 506 GPU
- LTE Cat 6 modem supporting 2 x 20Mhz carrier aggregation
- Dual LCDs and dual touch panels for independent display and operation: 1920 x 1200 @60fps for primary display and 1920 x 1080 @60fps for secondary display
- Supports up to 4 cameras with 2 working simultaneously
- BT 4.2
- Quick Charge 3.0
- Multi-constellation GNSS receiver
- Supports MIMO
- Supports recording and playback of 4K videos @30fps
