Quectel 5G Modules

Quectel RG600L-EU

IoT/eMBB-Optimized 5G Sub-6 GHz LGA Module

5G Sub-6 GHz module
LGA form factor
44 mm × 53 mm × 2.95 mm
Max. data rate SA Sub-6 GHz 4.67 Gbps (DL) / 1.25 Gbps (UL)
Max. data rate NSA Sub-6 GHz 4.67 Gbps (DL) / 836 Mbps (UL)
Extended temperature range of -40°C to +85°C

RG600L-EU is a 5G Sub-6 GHz LGA module optimized specially for IoT and eMBB applications. By adopting the 3GPP Rel-15 technology, the module supports both 5G NSA and SA modes. RG600L-EU is an industrial-grade module for industrial and commercial applications only.

RG600L-EU has built-in rich network protocols, integration of multiple industrial standard interfaces, and supports of multiple driver and software functions, and is integrated with network hardware accelerator and VPN hardware accelerator, which extend the applicability of the modules to a wide range of IoT and eMBB applications such as 5G wireless routers, CPE, MiFi, business routers, home gateways, etc.

Key Features:

5G Sub-6 GHz LGA module with 4G (LTE Cat 19), optimized for IoT and eMBB applications
Worldwide 5G, LTE-A and WCDMA coverage
Supports 5G NSA and SA modes
Supports 5G 2CC Carrier Aggregation
Spectrum multiplexing and significantly increased network capacity enabled with TM9

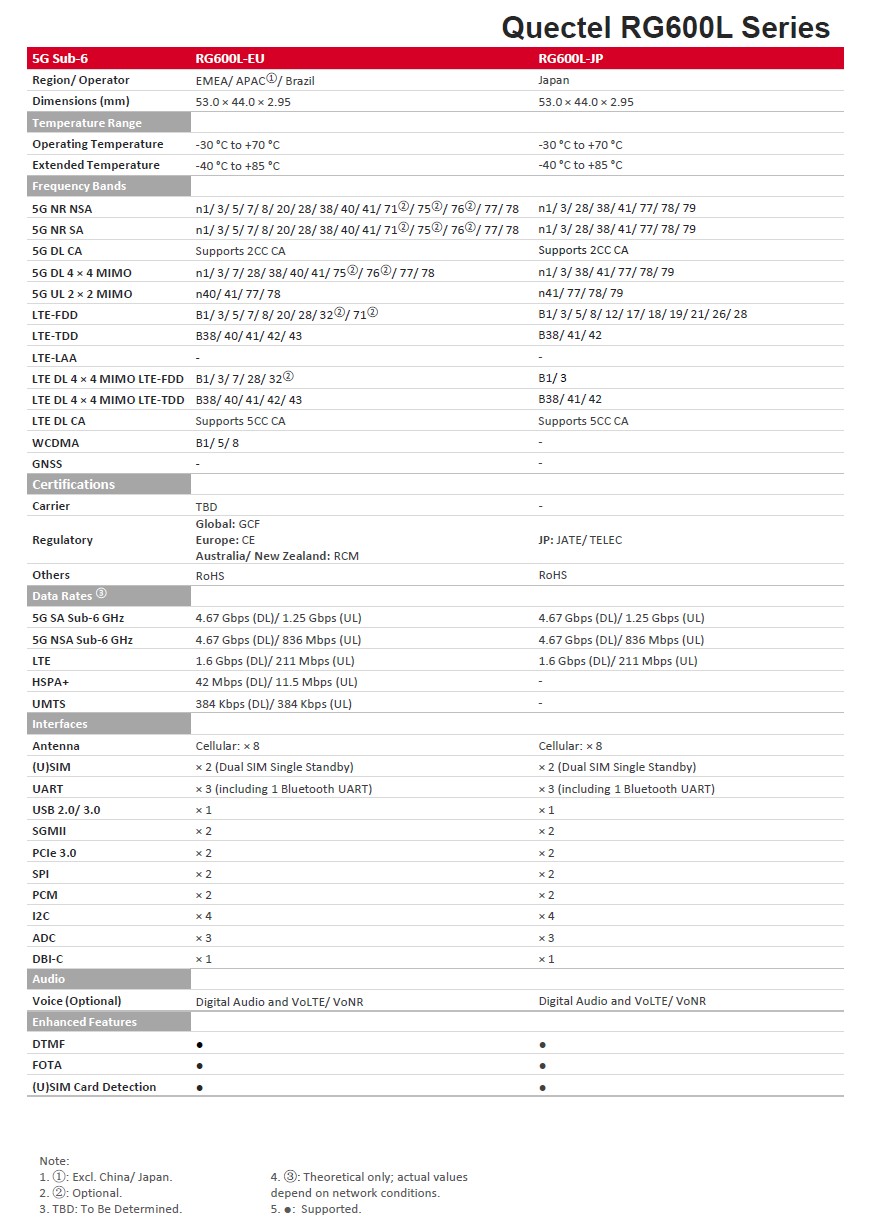

Quectel RG600L Series	RG600L-EU	RG600L-JP
Region/ Operator	EMEA/ APAC①/ Brazil	Japan
Dimensions (mm)	53.0 × 44.0 × 2.95	53.0 × 44.0 × 2.95
Temperature Range
Operating Temperature	-30 °C to +70 °C	-30 °C to +70 °C
Extended Temperature	-40 °C to +85 °C	-40 °C to +85 °C
Frequency Bands
5G NR
NSA	n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71②/ 75②/ 76②/ 77/ 78	n1/ 3/ 28/ 38/ 41/ 77/ 78/ 79
SA	n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71②/ 75②/ 76②/ 77/ 78	n1/ 3/ 28/ 38/ 41/ 77/ 78/ 79
5G DL CA	Supports 2CC CA	Supports 2CC CA
5G DL 4 × 4 MIMO	n1/ 3/ 7/ 28/ 38/ 40/ 41/ 75②/ 76②/ 77/ 78	n1/ 3/ 38/ 41/ 77/ 78/ 79
5G UL 2 × 2 MIMO	n40/ 41/ 77/ 78	n41/ 77/ 78/ 79
LTE
LTE-FDD	B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32②/ 71②	B1/ 3/ 5/ 8/ 12/ 17/ 18/ 19/ 21/ 26/ 28
LTE-TDD	B38/ 40/ 41/ 42/ 43	B38/ 41/ 42
LTE-LAA	-	-
LTE DL 4 × 4 MIMO (FDD)	B1/ 3/ 7/ 28/ 32②	B1/ 3
LTE DL 4 × 4 MIMO (TDD)	B38/ 40/ 41/ 42/ 43	B38/ 41/ 42
LTE DL CA	Supports 5CC CA	Supports 5CC CA
WCDMA	B1/ 5/ 8	-
GNSS	-	-
Certifications
Carrier	TBD	-
Regulatory	Global: GCF Europe: CE Australia/ New Zealand: RCM JP: JATE/ TELEC
Others	RoHS	RoHS
Data Rates ③
5G SA Sub-6 GHz	4.67 Gbps (DL)/ 1.25 Gbps (UL)	4.67 Gbps (DL)/ 1.25 Gbps (UL)
5G NSA Sub-6 GHz	4.67 Gbps (DL)/ 836 Mbps (UL)	4.67 Gbps (DL)/ 836 Mbps (UL)
LTE	1.6 Gbps (DL)/ 211 Mbps (UL)	1.6 Gbps (DL)/ 211 Mbps (UL)
HSPA+	42 Mbps (DL)/ 11.5 Mbps (UL)	-
UMTS	384 Kbps (DL)/ 384 Kbps (UL)	-
Interfaces
Antenna	Cellular: × 8	Cellular: × 8
(U)SIM	× 2 (Dual SIM Single Standby)	× 2 (Dual SIM Single Standby)
UART	× 3 (including 1 Bluetooth UART)	× 3 (including 1 Bluetooth UART)
USB 2.0/ 3.0	× 1	× 1
SGMII	× 2	× 2
PCIe 3.0	× 2	× 2
SPI	× 2	× 2
PCM	× 2	× 2
I2C	× 4	× 4
ADC	× 3	× 3
DBI-C	× 1	× 1
Audio
Voice (Optional)	Digital Audio and VoLTE/ VoNR	Digital Audio and VoLTE/ VoNR
Enhanced Features
DTMF	●	●
FOTA	●	●
(U)SIM Card Detection	●	●
Electrical Features
Supply Voltage Range	3.3–4.3 V, typ. 3.8 V	3.3–4.3 V, typ. 3.8 V
Power Consumption	100 µA @ Power down 6.5 mA @ Sleep 125 mA @ Idle (USB connected)	TBD
Transmitting Power	Class 3 (23 dBm ±2 dB) for WCDMA bands Class 3 (23 dBm ±2.7 dB) for LTE bands Class 2 (26 dBm +2/-3 dB) for LTE B41/ 42/ 43 Class 3 (23 dBm ±2.7 dB) for 5G NR bands Class 2 (26 dBm +2/-3 dB) for 5G NR n40/ 41/ 77/ 78, (Note: n40 @ UL MIMO) Class 1.5 (29 dBm +2/-3 dB) for 5G NR n41/ 77/ 78 UL MIMO (TX Diversity)	Class 3 (23 dBm ±2 dB) for LTE bands Class 2 (26 dBm +2/-3 dB) for LTE HPUE B41 Class 3 (23 dBm ±2 dB) for 5G NR bands Class 2 (26 dBm +2/-3 dB) for 5G NR HPUE n41/ 77/ 78/79 Class 1.5 (29 dBm +2/ -3 dB) for 5G NR HPUE n41/ 77/ 78 /79

Note:
1. ①: Excl. China/ Japan.
2. ②: Optional.
3. TBD: To Be Determined.
4. ③: Theoretical only; actual values depend on network conditions.
5. ●: Supported.
