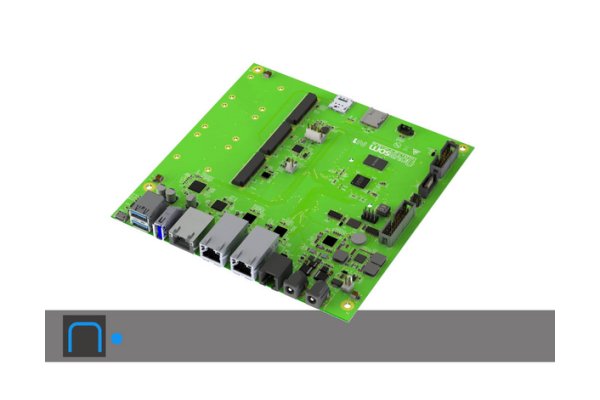

The board based on the QoriQ Layerscape NXP technology is able to drive a huge amount of TCP/IP data through the port of the CPU (Ethernet – PCIe – SATA III), without loading the CPU itself, by using a dedicated HW Unit.
Possibility to install:
| SBC-N1C |
Option available / NOTE | ||
| Processor | CPU | NXP LS1012 – Single Cortex A53 | @ 800Mhz with Layerscape IP |
| Memory | RAM memory DDR3 at 16bit | 512 MB | Option 256 MB or 1GB |
| FLASH | 64 Mb QSPI | Option 16 or 32 Mb | |
| µSD slot | Yes, metal | Any uSD supported | |
| Power |
Power input | 6,5-18V protected ( up to 22) | Redundant, kernel level managed Require 12V for SATA disk |
| UPS manager | Y | ||
| External battery for UPS | Available as OPT | LIPO 2S any size | |
| Power Consumption [W] | 3 | ||
| Multimedia |
Video Output | SPI video out | 5 frame per second, vga |
| On Board GPIO @ 3,3 V on strip | 4 | 2 shared w SPI | |
| USB |
USB port Host/Device on TYPE - A | 3 USB 3.0 + 1 USB 2.0 | |
| USB Console micro USB | 1 USB 2.0 | ||
| USB on strip | 1 USB 2.0 | ||
| Networking | RJ45 Ethernet connector | 2 | Giga, different MAC |
| Generic | Additional nr. 2 user led | Y | |
| RTC with ext rechargeable Battery with charger | Y | ||
| mpci slot full featured NO SIM | 1 | ||
| mpci slot only USB 2.0 (1 with SIM) | 2 | ||
| Operating temperature |
Temperature | -40+ 85 | |
| Dimension | Mechanical size | 170 x 170 mm | |
| Form factor | Mini ITX | ||
| Operating System | Distributions supported | Any Linux, Open WRT |
